Cross BEATS

Interactive Installation Design   |   Project Duration: 4 weeks   |   Client: Google   |   Budget: £ 20,000   |   Group Project

Cross BEATS - Rhythm of King's Cross

Brief: In the summer of 2014, Google approached MA Narrative Environments to make an interactive installation along King's Boulevard in King's Cross (KX). This is where the new UK headquarters of the company is under construction. They wanted to say hello to the community without having any visual connection to Google!

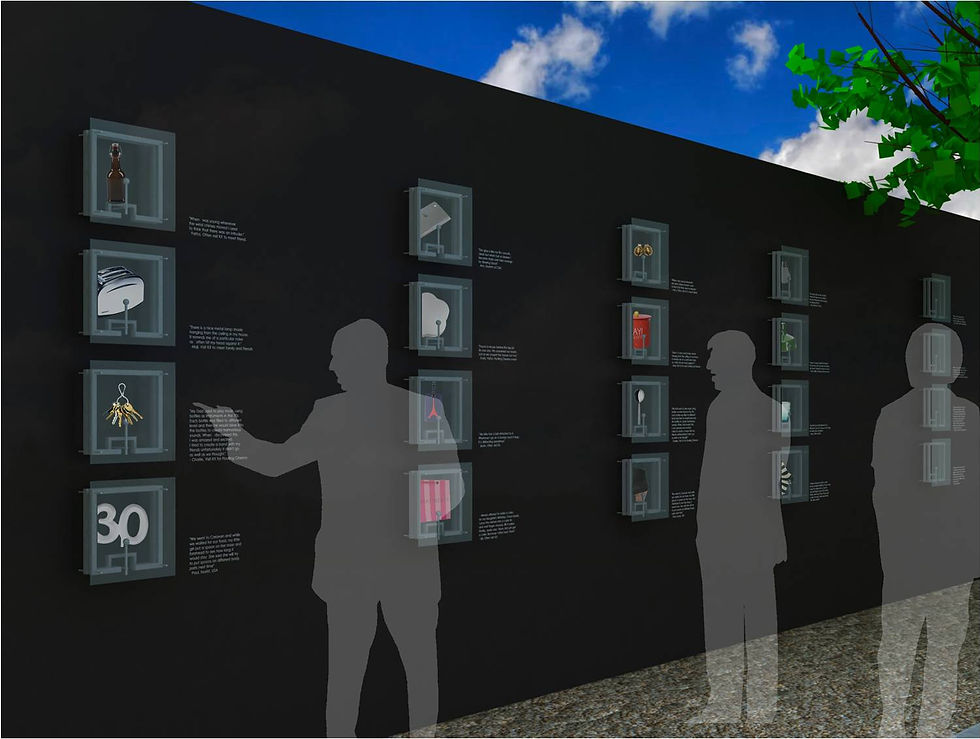

Concept: Cross BEATS is a musical wall that uses everyday objects to generate sounds. An interplay of different peoples’ varying paces that create the rhythm of King's Boulevard. The objects are hit by beaters that are triggered by the movement of people walking. Depending on their speed 1 or all 4 beaters (in a column) will be triggered. A motion sensor triggers the solenoid motor attached to the beater to hit the object.



Personal stories about daily objects are collected from the people of KX, people who work in, live in or visit KX. Objects are used to illustrate & represent the stories.

Check out the prototype video at the end!



Group members: Daisuke, Jacquetta, Vania, and Praneti

Click on the images to enlarge them.

Music at King's Cross
Music at King's Cross
press to zoom
Speed and trigger
Speed and trigger

Rhythms created by the movement of people caught by motion sensors.

press to zoom
Community stories
Community stories
press to zoom
Rhythm
Rhythm

When various objects are hit they create a unique series of sounds.

press to zoom
Objects and stories
Objects and stories

These objects are derived from personal stories and experiences shared by the communities.

press to zoom
After dark
After dark

The motion sensor triggers the solenoid motor to hit the object and lights the LED lamps behind the frames. This is a visual treat!

press to zoom
Elevation
Elevation

The cost of making and installation of one module came to £350 (approx)

press to zoom
Research
Concept development
Arduino + Motion sensors
Community involvement
